DZT1968 TK103A Vehicle Car GPS SMS GPRS Tracker Real Time Tracking Device Syatem

▶ Feature:
▶ Car GPS Tracker & Alarm System with Web based and PC based software by SMS / GPRS , Geo fence supported
▶ Support orientation without orientated server: it can find out Real-time longitude and latitude, time and speed.
▶ If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
▶ Remote Engine-stop and Resume.
▶ Tracking function by timing and frequency
▶ Authorized number added and deleted function
▶ Support hidden alarm and monitor function
▶ Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district.
▶ Power supply disconnection alarm.
▶ Door alarm
▶ ACC alarm
▶ Low battery alarm function
▶ Check the vehicle status
▶ DIM. 54*62*26mm
▶ Weight: 120g
▶ Network: GSM/GPRS
▶ Band: 850/900/1800/1900Mhz
▶ GSM/GPRS Module: Simcom300d or Simcom340d
▶ GPS Chip: SIRF3 chip
▶ GPS Sensitivity: -159dBm
▶ GPS Accuracy: 5m
▶ GPS Start time: Cold status: 45s, Warm status: 35s, Hot status: 1s
▶ Voltage of car power system: 12 V -24V
▶ Backup battery: Chargeable 3.7V 800mAh Li-ion battery
▶ Storage Temp. -40 to +85
▶ Operation Temp. -20 to +65
▶ Humidity 5%–95% non-condensing
▶ Widely Applications:
▶ Anti-theft of the vehicle/heavy equipment etc.
▶ Protect the child / the old / the disabled / pet etc.
▶ Provide peace-of-mind for businessman;
▶ Personnel management;
▶ Covert criminal Tracking

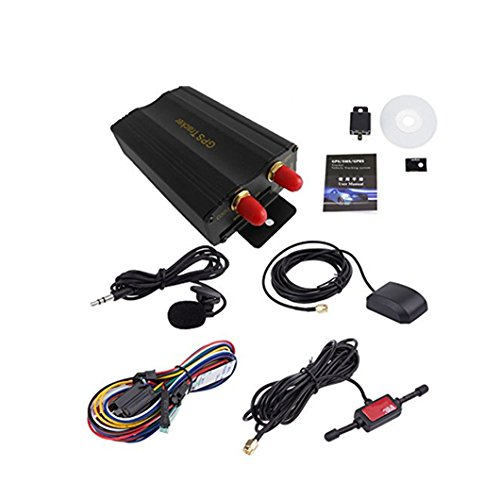

▶ Package Content:
▶ 1 x Vehicle Car GPS Tracking Device
▶ 1 x GPS Antenna 3 meters long
▶ 1 x GSM Antenna 1.5 meters long
▶ 1 x Harness(10pin)
▶ 1 x Electronic Relay(12V 40A)
▶ 1 x Lapel microphone(1.5m long)
▶ 1 x CD (GPS Manage Software)
▶ 1 x Card slot for SIM
▶ 1 x User Manual

Product Features

  • Functions: Tracking; Monitor; Geo-fence; Movement alert; Over speed alert; SOS Button; Low battery alert; Hidden number tracking; Power off alarm; Send SMS cut off/resume the oil and power system, arm, door alarm, sensor alarm, ACC alarm; Support 4G SD card; Support TCP and UDP protocol.
  • The GPS devices support phone tracking and 8 languages (English, Spanish, Portuguese, Arabic, Thai language, Italian, German, Chinese) website tracking.
  • Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
  • This GPS Tracker was specially made for vehicles. It’s a new product based on the GSM/GPRS (850, 900, 1800, 1900MHz) network and satellite positioning system. It sets multiple functions such as real time positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety.
  • The unit is powered by automotive battery, and should be installed inside a vehicle (preferably a place where it cannot be seen, for example, under the car seat). It runs on the latest GPS SiRF III chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure operated by your network provider to transmit its current location to you.
